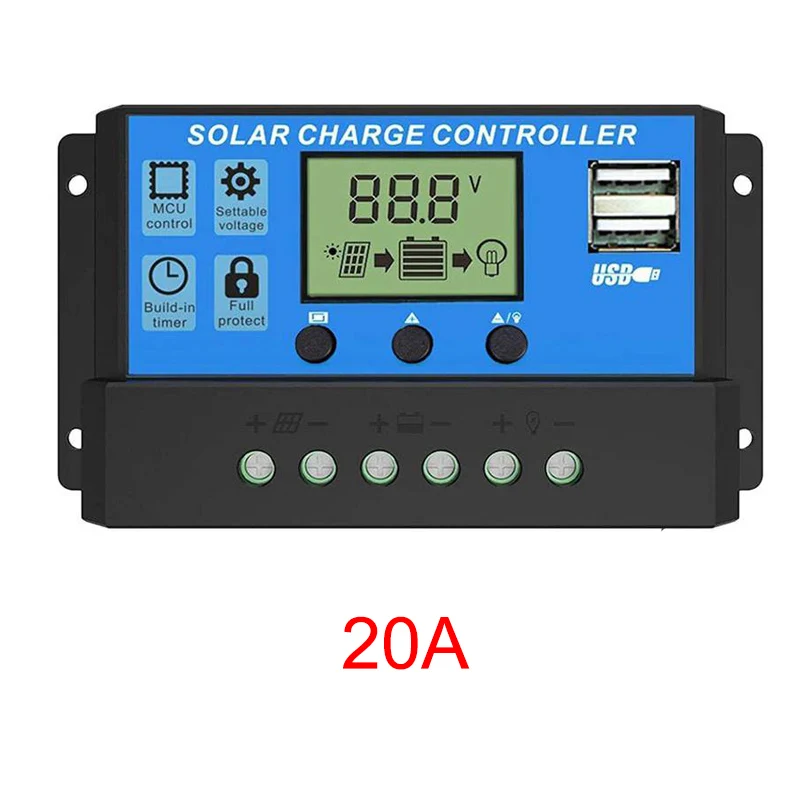

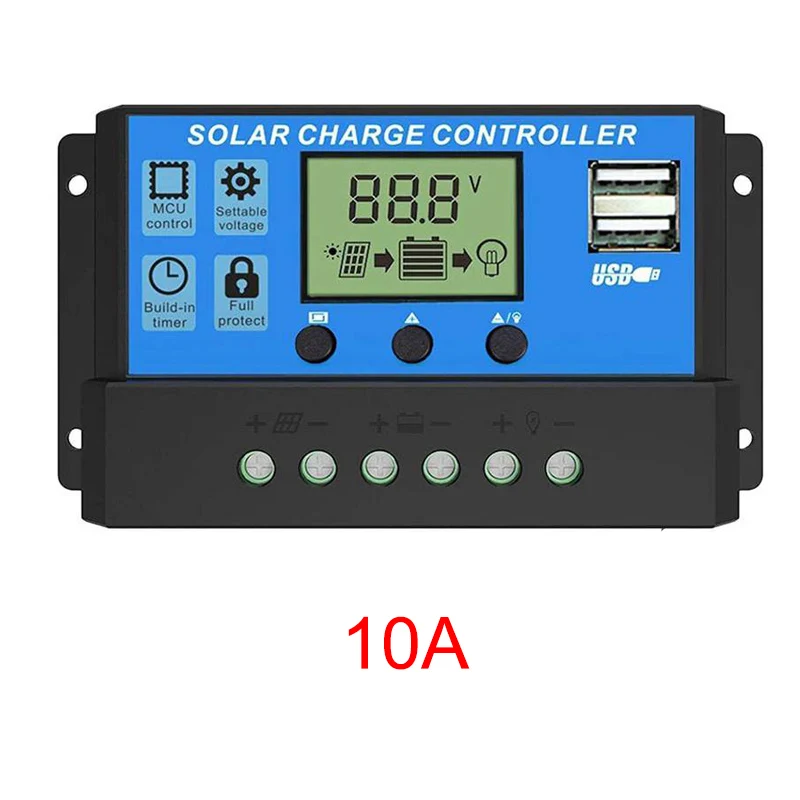

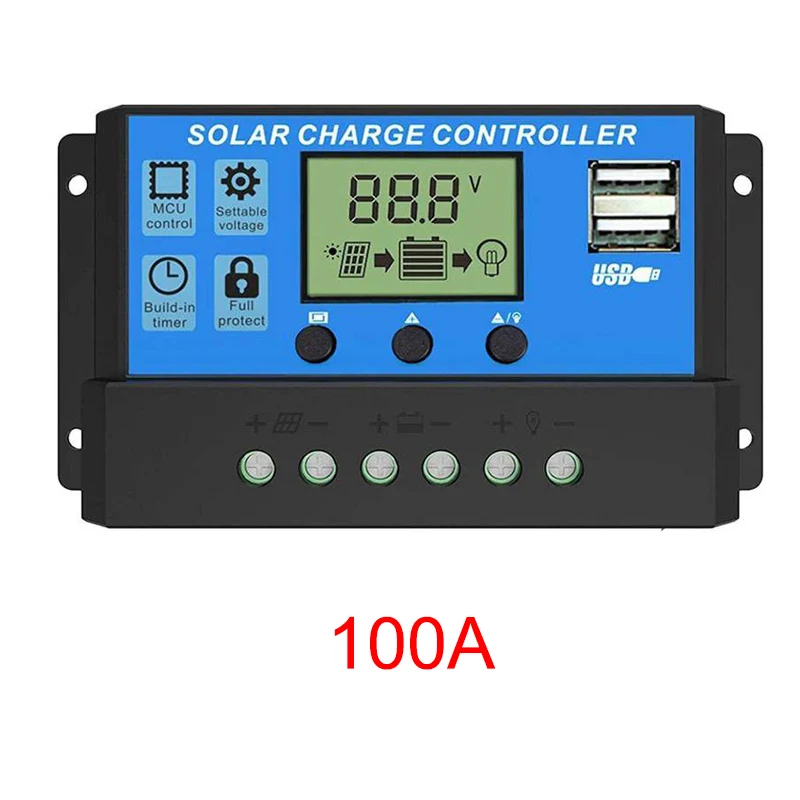

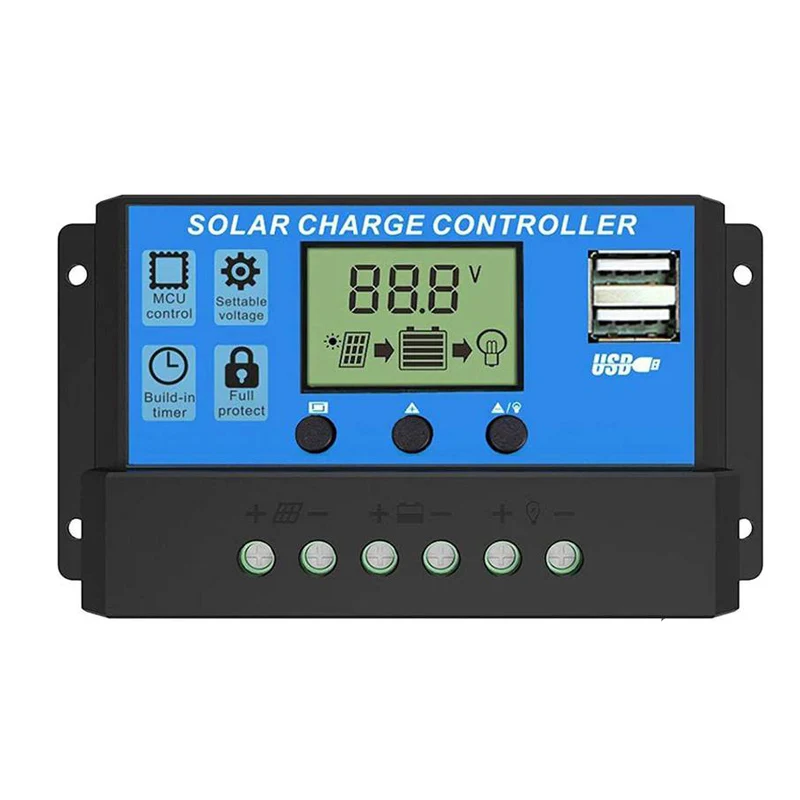

10/20/30/40/50/60/100A Solar Charge and Discharge Controller LCD Display Dual USB Auto Solar Cell Panel Charger Regulator

Specifications

1. Rated voltage: 12/24V

2. Rated current: 10/20/30/40/50/60/100A

Function:

1. Always keep the battery on fill voltage condition.

2. Prevent the battery from over-charging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during

nights.

5. Reverse Polarity Protection for Battery

6. Reverse Polarity Protection for Solar Panels

7. When the battery voltage is low, the controller will

automatically cut off the load from the system. If the voltage of

battery is back to normal and the load will restart working.

8. Thunder protection

9. According to the battery voltage grade, the controller can

automatically set charge-off voltage, the load-off voltage, the

load- restore voltage. (The parameter is default under 25celsius

condition, locked by the CPU procedure, cannot adjust.)

10. The controller will automatically compensate the temperature of

the charging voltage according to the changes of ambient temperature.

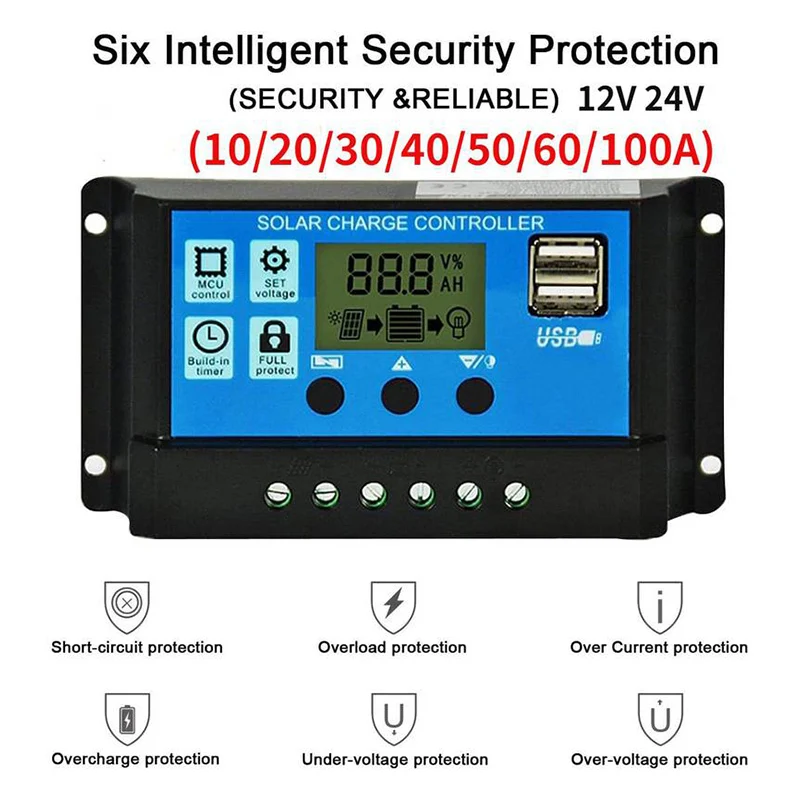

Feature：

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

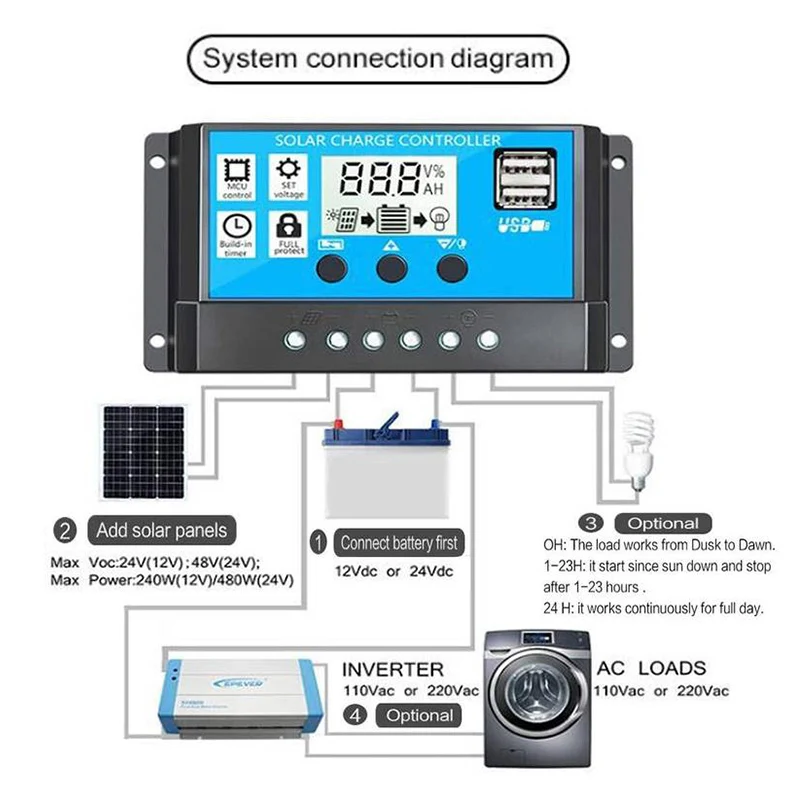

Connection：

1.Connect the battery to the charge regulator – plus and minus.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

Package Includes:

1 x Solar Panels Battery Charge Controller

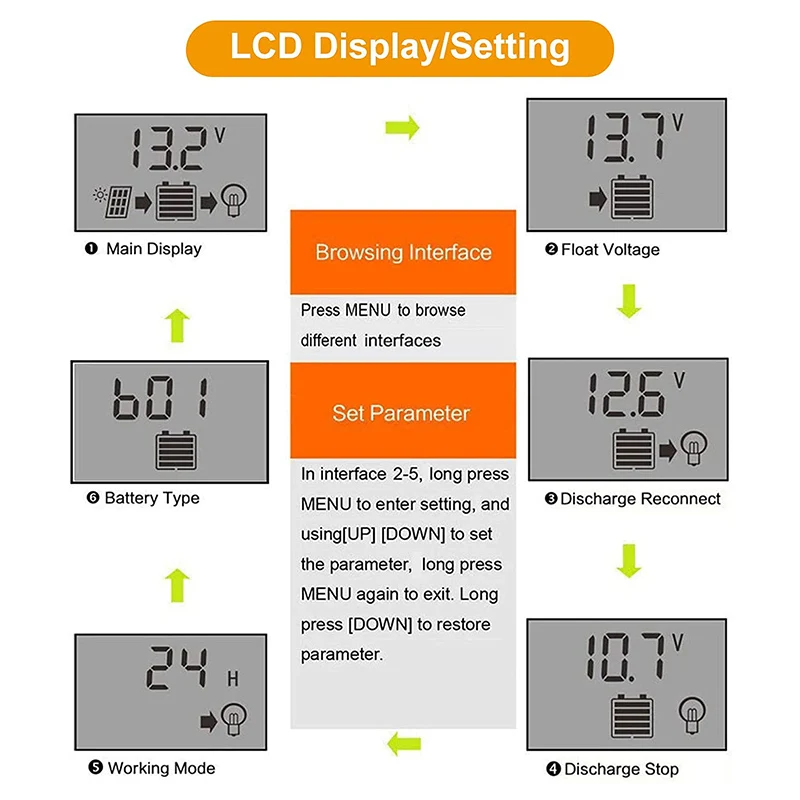

Product Parameter：

MODEL	RBL-10A	RBL-20A	RBL-30A	RBL-40A	RBL-50A	RBL-60A
Battery Voltage	12V 24V Auto
Charging Current	10A	20A	30A	40A	50A	60A
Discharging Current	10A	10A	10A	20A	30A	30A
Max Solar input	48V(for 24V battery) 24V(for 12V battery)
Equalization	14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge	13.7V(defaul,adjustable)
Discharge stop	10.7V(defaul,adjustable)
Discharge reconnect	12.6V(defaul,adjustable)
Charge reconnect	13V
Voltage of open light	Solar Panel 8V(Light lights delay)
Voltage of close light	Solar Panel 8V(Light off delay)
USB output	5V/3A
Self-consume	<10mA
Operating temperature	-35°C~+60°C

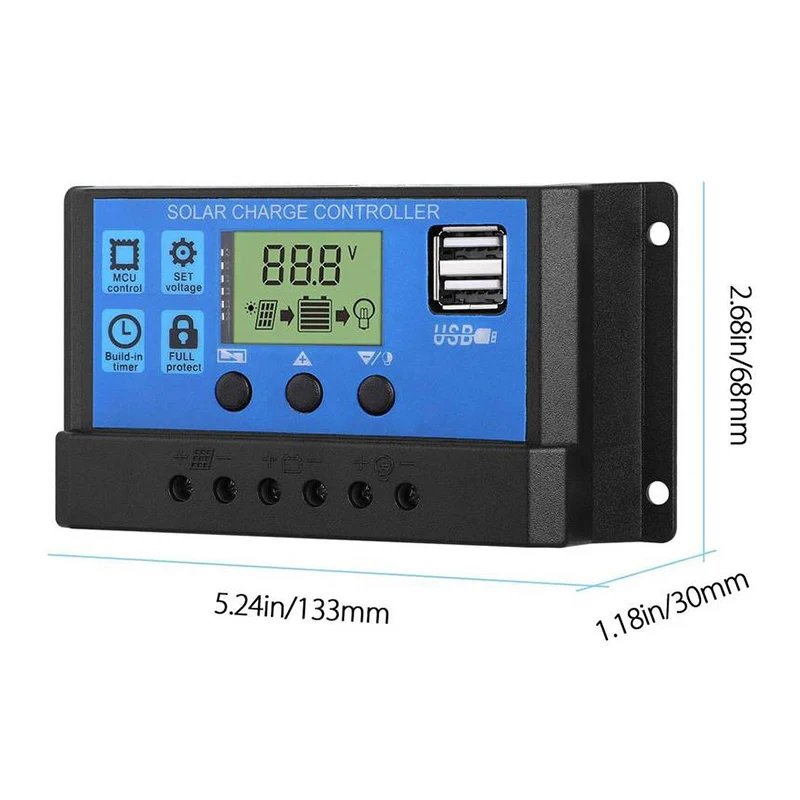

Size	133.5*70*35mm			188*90*47mm
